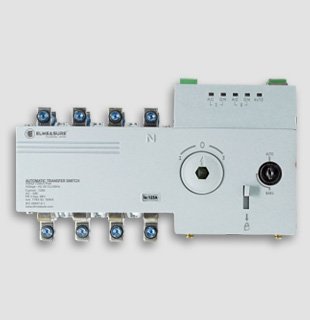

ATS (Automatic Transfer Switch)
Salient Features
- Automatic start/stop operation of DG on mains failure
- Overload tripping (optional) with inverse curve logic
- Automatic transfer switch are provided with fire alarm / external fault trip feature
- Inbuilt control switch for selecting auto/manual mode
- Automatic transfer switch have high capacity to withstand short circuit
- Optional RS485 communication and cloud
Applications
- Monitor real-time system voltage and frequency
- Monitor source healthiness and output for both Source
- Wide range of motor operating voltage from 150VAC – 285V AC
- Automatic transfer switch for commercial centers, manufacturing, medical facilities,and data centers.
| Model Number | Parameter |
|---|---|
| ATeS – 125 | EB: V,Hz and DG: V,Hz, Rating:63-125A |
| ATeS – 250 | EB: V,Hz and DG: V,Hz,Rating:160-250A |
| ATeS – 630 | EB: V,Hz and DG: V,Hz,Rating:315-630A |
| ATeS-1600A | EB: V,Hz and DG: V,Hz,Rating:800-1600A |
