• Aviation Obstacle Lights

LED based Aviation Obstacle Lights

The LED products are an amazing combination of technical innovations, including breakthroughs in fascia design, electronics design and mechanical design. The core of the innovation is a new way to generate light with LEDs. Ensuring the long life of an LED product depends on effectively controlling the operating parameters of the LEDs. Our products are designed to utilize all components to effectively even its worst-case environment which takes the performance quotient to the next level.

Ray Dynamics manufacture LED based Aviation Obstacle Lighting products as per ICAO norms. LED products stands as a pioneer and is a part of the effort to constantly provide the Indian market with high quality products and services.

Riding on this segment with esteemed customer support and geared up to spice the competition with its impulsive products. Having maintained a leading Image by leveraging high quality technology with its thorough understanding of the Indian market, we are confident that our LED Aviation lighting products will fascinate the users across India with agility, comfort and affordable price.

This will provide impetus to Ray Dynamics aim to capitalize on the emerging opportunities in the Indian next generation lighting industry and maintain its competitiveness across all market segments.

Giving cutting edge technology a new name will ensure smooth, rich experience to the user. The light engine has been designed to fulfill the conflicting demands of requirement and energy efficiency – the most significant aspect of the industry.

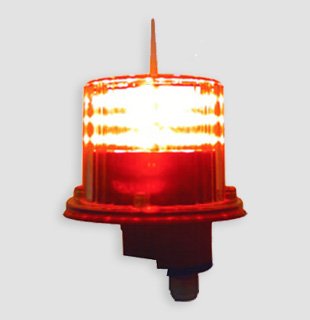

230 V AC Aviation Obstacle Lights

Salient Features:

  • Low intensity type-B
  • Very low power consumption
  • Zero maintance
  • Quick Investment return
  • Inbuilt Day - night switch
  • Tower water & dust tight fitting
  • wide operational voltages in both AC & DC versions
  • Intergrated cable terminal box with ployamide gland
  • patent applied design

Applications :

  • Telecom Towers
  • WAN Networking Towers
  • Wind Energy
  • Buildings and other tall structures
  • Hazardous Locations
  • Windsocks at airport and other locations
  • ILS structures in airport
  • ATC Towers

Specifications:

  • ICAO Annex 14 volume-1 third edition july 1999 chapter 6
  • Low intensity type- B compliance as per ICAO
  • Tested as per IS at Si tarc govt. institued NABAL Accredited lab

Photometry:

  • Intensity>45 CD
  • Light output - Aviation RED
  • All Around horizontal radiation pattern
  • Vertical divergence upto 15 deg
  • Ultra high bright AIGAP technology LEDs
  • Expected life of 1,00,000 burning hours

Electrical Characteristics:

  • Multi redundant circuits
  • Power consumption 5watts max
  • Wide Voltage operation (70-270V AC and 20-60V-DC)
  • Input surge protection and class || EMI filter
  • Reverse polarity protected for DC

Mechanical Characteristics:

  • LM-6 Aluminium housing
  • Aviation Red UV stabilized PP powder coated
  • UV stabilized PC lens
  • IP66 degree of protection
  • -10 to +55 deg operation
  • Intergrated brid Spike
  • Intergrated IP66 terminal box
  • 3/4" BSP threaded bottom fixing hub

48 V DC Aviation Obstacle Lights

Salient Features:

  • Low intensity type-B
  • Very low power consumption
  • Zero maintance
  • Quick Investment return
  • Inbuilt Day - night switch
  • Tower water & dust tight fitting
  • wide operational voltages in both AC & DC versions
  • Intergrated cable terminal box with ployamide gland
  • patent applied design

Applications :

  • Telecom Towers
  • WAN Networking Towers
  • Wind Energy
  • Buildings and other tall structures
  • Hazardous Locations
  • Windsocks at airport and other locations
  • ILS structures in airport
  • ATC Towers

Specifications:

  • ICAO Annex 14 volume-1 third edition july 1999 chapter 6
  • Low intensity type- B compliance as per ICAO
  • Tested as per IS at Si tarc govt. institued NABAL Accredited lab

Photometry:

  • Intensity>45 CD
  • Light output - Aviation RED
  • All Around horizontal radiation pattern
  • Vertical divergence upto 15 deg
  • Ultra high bright AIGAP technology LEDs
  • Expected life of 1,00,000 burning hours

Electrical Characteristics:

  • Multi redundant circuits
  • Power consumption 5watts max
  • Wide Voltage operation (70-270V AC and 20-60V-DC)
  • Input surge protection and class || EMI filter
  • Reverse polarity protected for DC

Mechanical Characteristics:

  • LM-6 Aluminium housing
  • Aviation Red UV stabilized PP powder coated
  • UV stabilized PC lens
  • IP66 degree of protection
  • -10 to +55 deg operation
  • Intergrated brid Spike
  • Intergrated IP66 terminal box
  • 3/4" BSP threaded bottom fixing hub

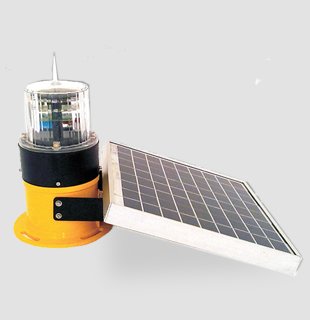

Solar Based Aviation Obstacle Lights

Salient Features:

  • Nonconventional solar energy green power LED Aviation lighting
  • Low Intensity Type A as per ICAO
  • Inbuilt day night switch
  • Weather proof fitting
  • Integrated solar panel
  • High efficency design
  • Zero maintenance
  • Quick investments returns
  • Eliminates cabling, hence reduction in installation cost.

Specifications:

  • ICAO Annex 14 Vol - 1,3rd Edition July 1990, Chapter 6

Photometry:

  • Intensity >12 Cd
  • Light output Aviation red
  • Omni directional horizontal radiation pattern
  • Ultra high bright ALGAP technology LEDs
  • Expected 1,00,000 burning hours

Electrical Characteristics:

  • Multi redundant series parallel circuit
  • Innovative wireless bus distribution system
  • Reverse polarity protection of battery
  • Ploy crystallin solar photo voltaic module
  • 7AH VRLA SMF battery
  • State of art battery charge controller
  • Auto day/night switch inbuilt
  • Flash mode at threshold battery voltage
  • LV detect and auto cut off for battery (prevents deep discharge)
  • Transport switch to prvent discharge during shipping
  • Float charge feature & Quick/controlled charge feature
  • Two day autonomy
  • Inbuilt status indicator LED

Mechanical Characteristics:

  • LM6 Aluminum housing
  • Integrated brid spike
  • Easy flange mounting facility
  • Aviation yellow/ Red UV stabilize PP powder coated housing
  • UV stabilized PC Lens & collar
  • All SS304 grade hardware
  • Patent pending lens design
  • Easy on site battery replacement
  • Scientifically angled PV panel support arm

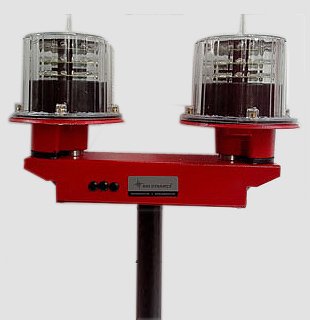

Dual Aviation Obstacle Lights (230 V AC and 48 V DC)

Salient Features (Individual fixture):

  • Low intensity type-B
  • Very low power consumption
  • Zero maintenance
  • Quick Investment return
  • Inbuilt Day - night switch
  • Tower water & dust tight fitting
  • wide operational voltages in both AC & DC versions
  • Intergrated cable terminal box with ployamide gland
  • patent applied design

Applications :

  • Telecom Towers
  • WAN Networking Towers
  • Wind Energy
  • Buildings and other tall structures
  • Hazardous Locations
  • Windsocks at airport and other locations
  • ILS structures in airport
  • ATC Towers

Specifications:

  • ICAO Annex 14 volume-1 third edition july 1999 chapter 6 (individual fixture)
  • Low intensity type- B compliance as per ICAO (individual fixture)
  • Tested as per IS at Si tarc govt. institued NABAL Accredited lab (individual fixture)

Landing T or H Indicators

An important Visual Navigational Aid in airports which facilitates pilots to decide the landing direction during night hours. Designed in accordance with ICAO Aerodrome standards-aerodrome design & operators manual for Landing Direction Indicator Landing-T lamp advisory. Light output colour : WHITE


Salient Features (Individual fixture):

  • Solid state design
  • High Efficacy power class white LEDs
  • All aluminum construction with IP66 light engine
  • Efficient wide voltage power module
  • Retrofittable with old/existing conventional bulb fixture
  • 80% power saving than existing bulb type
  • Long lasting
  • Virtually maintenance free
  • Patented lens design
  • Bird spike protection
  • Omnidirectinal light output
  • PP grade powder coat

Applications :

  • Telecom Towers
  • WAN Networking Towers
  • Wind Energy
  • Buildings and other tall structures
  • Hazardous Locations
  • Windsocks at airport and other locations
  • ILS structures in airport
  • ATC Towers

Specifications:

  • ICAO Annex 14 volume-1 third edition july 1999 chapter 6 (individual fixture)
  • Low intensity type- B compliance as per ICAO (individual fixture)
  • Tested as per IS at Si tarc govt. institued NABAL Accredited lab (individual fixture)
